STRO Membrane

STRO membrane technology is a new type of structural membrane component specially developed for leachate and high-salt wastewater treatment. It adopts a roll membrane structure and uses parallel grid channels that are different from general roll membranes. It has stronger anti-fouling ability and a wider range of application scenarios.


■ Structural Principle

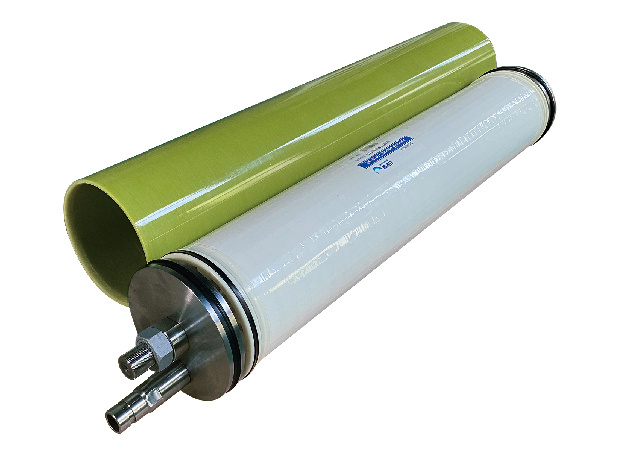

A complete ST membrane assembly includes the following parts:
● ST membrane core (RO, NF, etc.)
● Inlet and outlet water guide plate and pipeline
● Center tie rod
● Pressure vessel (shell)
Wastewater enters directly from the end, and is evenly distributed to the feed end face of the membrane assembly through a guide distribution plate. Under pressure, the dialysate flows through the grid into the middle dialysate collection pipe, and the remaining intercepted wastewater flows out of the concentrated water pipe through the parallel grid. The membrane assembly is connected in series to achieve an increase in water recovery rate and a reduction in energy consumption.


■ Technical Parameters

Technical Parameters

WSD-STRO 75bar

WSD-STRO 90bar

WSD-STRO 120bar

Clean Water Flow, m³/h

6-16

6-16

6-16

Operating Flow, m³/h

7-15

7-15

7-15

Influent Free Chlorine Concentration, ppm

Undetectable

Undetectable

Undetectable

Maximum Cleaning Temperature, °C

45

45

45

Maximum Operating Temperature, °C

40

40

40

Maximum Operating Pressure, bar

70

90

120

Normal Operating Pressure, bar

30-70

40-90

60-120

Continuous Running pH

2-11

2-11

2-11

Chemical Cleaning pH

1-12

1-12

1-12

Single Effective Membrane Area, m²

27

27

27

Overall Length, mm

1350

1350

1350

External and Internal Dimensions, mm/mm

218/202

220/202

224/202

Suitable for Raw Water Conductivity, ms/cm

20-60

50-100

80-150

Desalination Rate (at 25℃ Water Temperature)

≥98.5%

≥98.5%

≥97.5%

Normal Pressure Difference, bar

0.5-1.0

0.5-1.0

0.5-1.0

Pressure Vessel/Integrated Flange

FRP/Duplex Stainless Steel

FRP/Duplex Stainless Steel

FRP/Duplex Stainless Steel



Dimensions

A

inch

(mm)

B

inch

(mm)

C

inch

(mm)

D

inch

(mm)

Inlet/Concentrated Water Connector

Water Production Connector

8042

STRO-1200

55(1350)

47(1200)

8.7(220)

3.54(90)

1

3/8

8035

STRO-1000

47(1200)

39.4(1000)

8.7(220)

3.54(90)

1

3/8

Note: The length of the water inlet joint is 120mm, and the length of the concentrate joint is 170mm; water inlet and outlet mode: upper water inlet/lower concentrate water (water production) or lower water inlet (water production)/upper concentrate water.

● Product performance may vary under different conditions. The information on this website is for reference only and is not intended to be used as a basis for performance guarantees in actual applications. WSD reserves the right to make changes. If required, clients may consult with our sales representatives about the latest information, of which no further notice will be given.
