DTRO Diaphragm Membrane

DTRO uses an open flow channel. The feed liquid enters the pressure vessel through the inlet. The treated liquid flows into the guide plate at a short distance, reverses 180 degrees from one side of the membrane to the other side of the membrane, enters the next guide plate, and then flows out from the outlet. This special design causes the liquid to form turbulence when it flows through the membrane surface and collides with the convex points on the guide plate surface, increasing the permeation rate and self-cleaning function, and extending the service life of the membrane.


■ Technical Parameters

Model

DS-75

DS-90

DS-120

Diaphragm

Imported Diaphragm

Effective Membrane Area/Sheet (m²)

0.04

Stable Desalination Rate (%)

99.4

99.6

99.75

Maximum Operating Pressure (bar)

75

90

120

Concentrated Water Side Limit Concentration (ppm)

45000

60000

110000

Maximum Operating Temperature (°C)

45℃

45℃

45℃

Continuous Operation pH Range

3-11

3-11

3-11

Chemical Cleaning pH Range

2-12

2-12

2-12

Testing Conditions:

DS-75: 7000mg/l Nacl, 5.0MPa operating pressure, 25℃ water temperature, PH 8;
DS-90: 30000mg/l Nacl, 5.0MPa operating pressure, 25℃ water temperature, PH 8;
DS-120: 35000mg/l Nacl, 9.0MPa operating pressure, 25℃ water temperature, PH 8

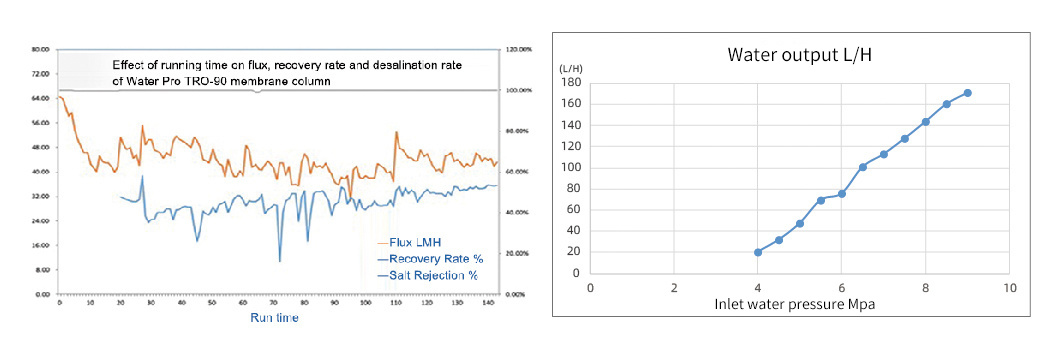

■ DTRO Membrane Performance Parameters


■ DTRO Membrane Product Features
1.High-strength high-pressure resistant design
High-strength high-pressure resistant design, can withstand a maximum pressure of 200 bar.
2.Open flow channel
Open flow channel reduces flow resistance and concentration polarization.
3. When the high-pressure resistant high-rejection rate
Membrane is contaminated, part of the DTRO membrane and guide plate can be replaced according to the actual situation to reduce the system consumables cost.


■ DTRO Diaphragm Size

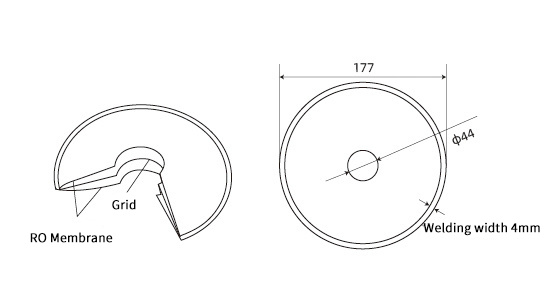

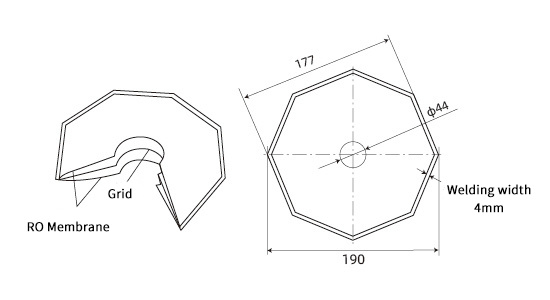

Dimensions of round DTRO membrane Octagonal DTRO diaphragm dimensions


■ DTRO Membrane Packaging Size

Model

Self-sealing Aluminum Bag

Carton Size (mm)

Quantity/Box

DS-75/90/120

40 pieces (with paper)/bag,

50 pieces (without paper)/bag

300x300x375

10 bags/box

● Product performance may vary under different conditions. The information on this website is for reference only and is not intended to be used as a basis for performance guarantees in actual applications. WSD reserves the right to make changes. If required, clients may consult with our sales representatives about the latest information, of which no further notice will be given.
